Switching Power Supply 16 A, 5 V



From: $185.00

Bulk Pricing (6 - 14): $167.00

Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
SMALL SIZE, EFFICIENT

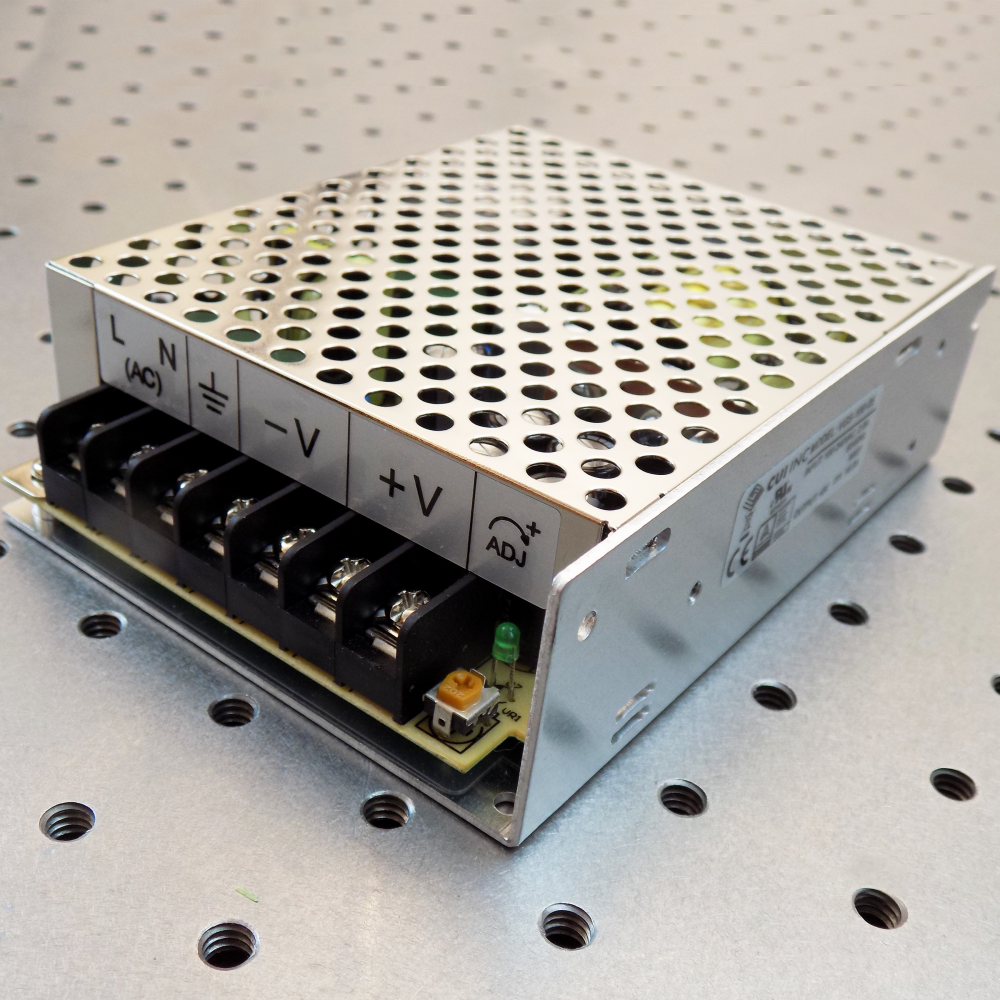

Wavelength offers the PWRPAK-16A-5V low noise switched power supply for the LD15CHA Laser Diode Driver. It provides 16 A output current at 80% efficiency.

One of the most important components affecting noise performance is the power supply used to power the laser driver. A linear supply will offer lower noise, but a much larger size and lower efficiency.

SIMPLE POWER CONNECTIONS

This PWRPAK offers enough current and voltage to operate the LD15CHA in single supply operation. It has a 5 V output to power the control electronics and provide up to 3 V to the laser. The 16 A current output covers the entire current range of LDxCHA models. An additional wiring kit (WCB325) makes connections easy.

FEATURES & BENEFITS
  • 80 W
  • Compact footprint
  • Universal input (88-264 VAC / 125-373 VDC)
  • Over voltage, over load, and short circuit protections
  • UL/cUL and TUV safety approvals
  • Long life electrolytic capacitors
  • No load power consumption < 0.5 W
  • Ripple and noise 100 mVp-p
  • 80% Efficiency

Output current: 16 A

Output voltage: 5 VDC

Input Voltage: 88 – 264 VAC or 125 – 373 VDC

Input Ripple & Noise: ≤100 mV peak-to-peak

Size: 5.1” x 3.9” x 1.5” [129.5 x 97.5 x 37.5 mm]

Certifications:
EN 55022 : 1998+A1 : 2000+A2 : 2003 Class B,
EN 61000-3-2 : 2000+A2 : 2005 Class A,
EN 61000-3-3 : 1995+A1 : 2001,
EN 61204-3 : 2000
EN 50204 1998+A1 : 2001+A2 : 2003 light industry level, criteria A
UL 60950-1 / TUV EN 60950-1

Dimensions:
