Switching Power Supply 3 A, 9 V



From: $156.00

Bulk Pricing (6 - 14): $140.00

Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

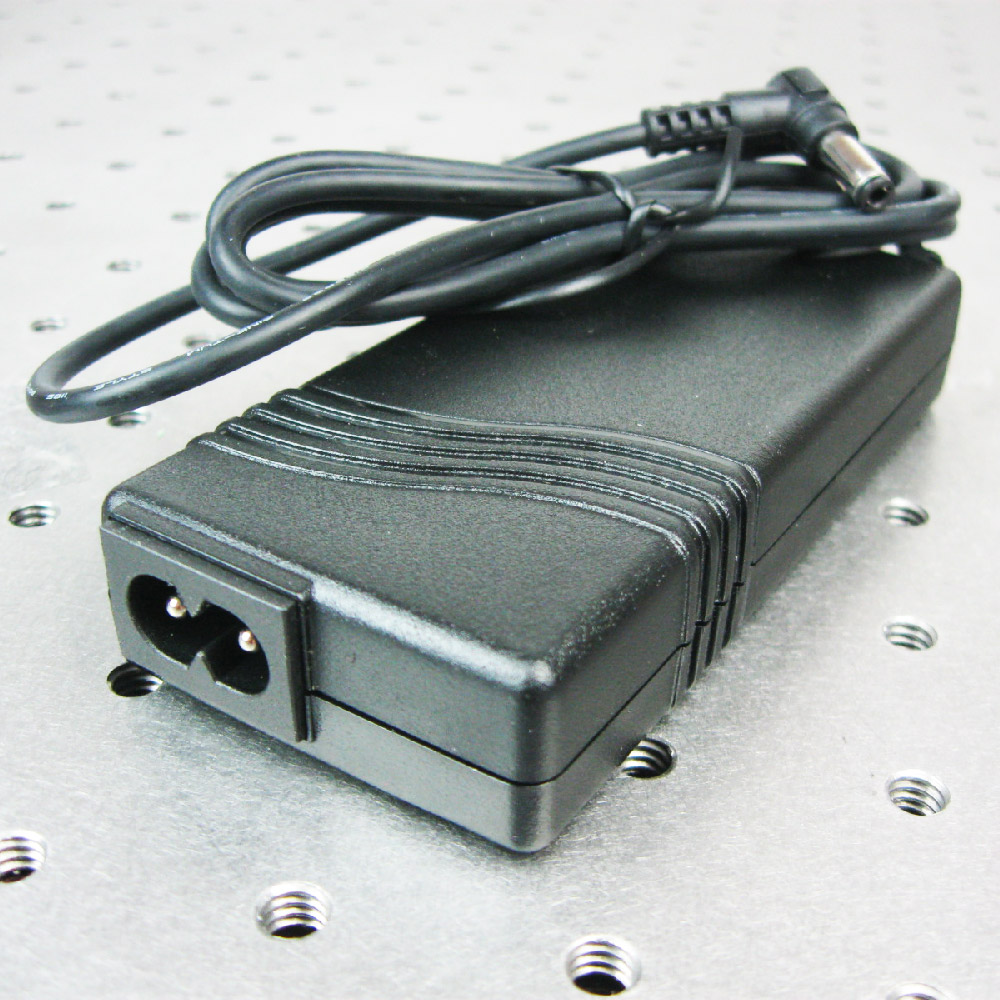

The PWRPAK-9V is a switching power supply that can be used with a variety of Wavelength Electronic controllers. It drives up to 3 A at 9 VDC.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

Output current: 3 A

Output voltage: 9 VDC

Input Voltage: 90-264 VAC, 47-63 Hz

Input Ripple & Noise: 1% peak-to-peak

Termination: 2.5 mm dia

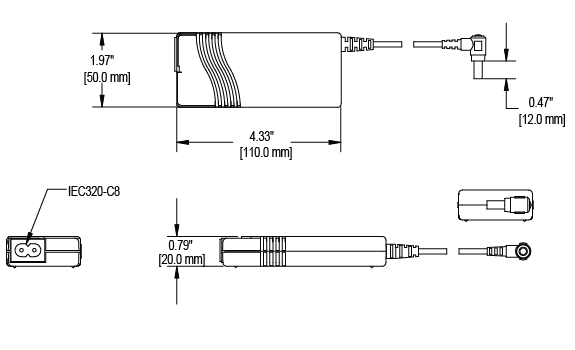

Dimensions: 2″ x 4.33″ x 0.8″ (50 x 110 x 20 mm)

Certifications: CE Mark Approved to UL, GS and TUV Safety Standards

Pwrpak 9V 12V
