QCL Test Load for QCL1500



From: $100.00


Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

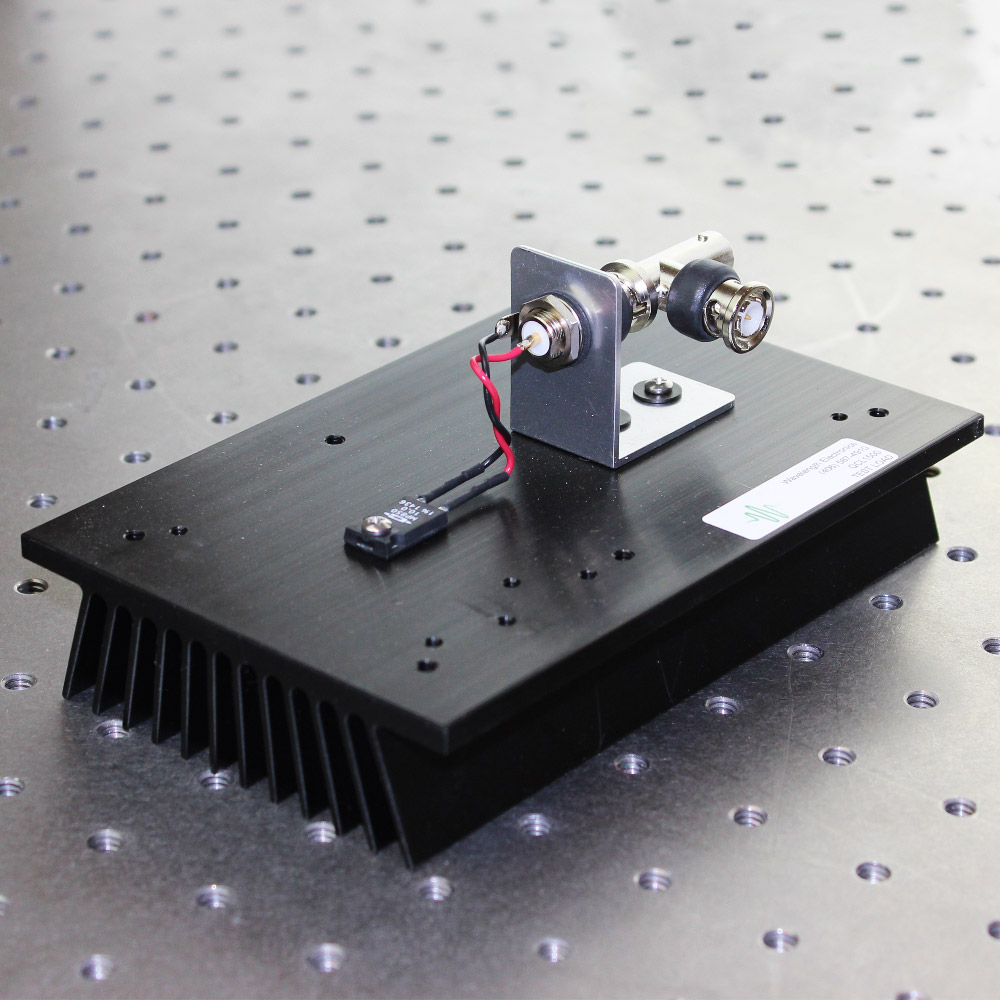

Quantum Cascade Lasers are typically very expensive. We recommend that you use a test load for initial setup of the QCL-LAB and QCL-OEM families of low noise Quantum Cascade Laser drivers. The QCLTL-1500 can be used with the QCL1500 LAB, QCL1500 OEM, or QCL1500 OEM(+) drivers. A 10 Ω, 50 W resistor is mounted to a heatsink and coupled to a BNC connector. A BNC T-connector is also included. The test load can be connected to the QCL driver using the BNC to SMA cable 55-110014, sold separately.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

10 Ω, 50 W, TO220 resistor

Heatsink size: 4″ x 6″ x 1.125″ (102 x 152 x 29 mm)
Material: Black anodized aluminum
Natural Convection Thermal Resistance: 1.57°C / W

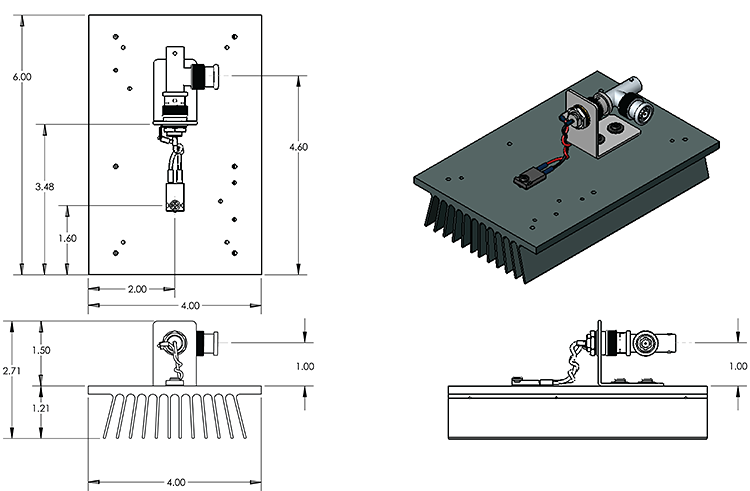

QCLTL-1500 Dimensions

QCLTL Dimensions
