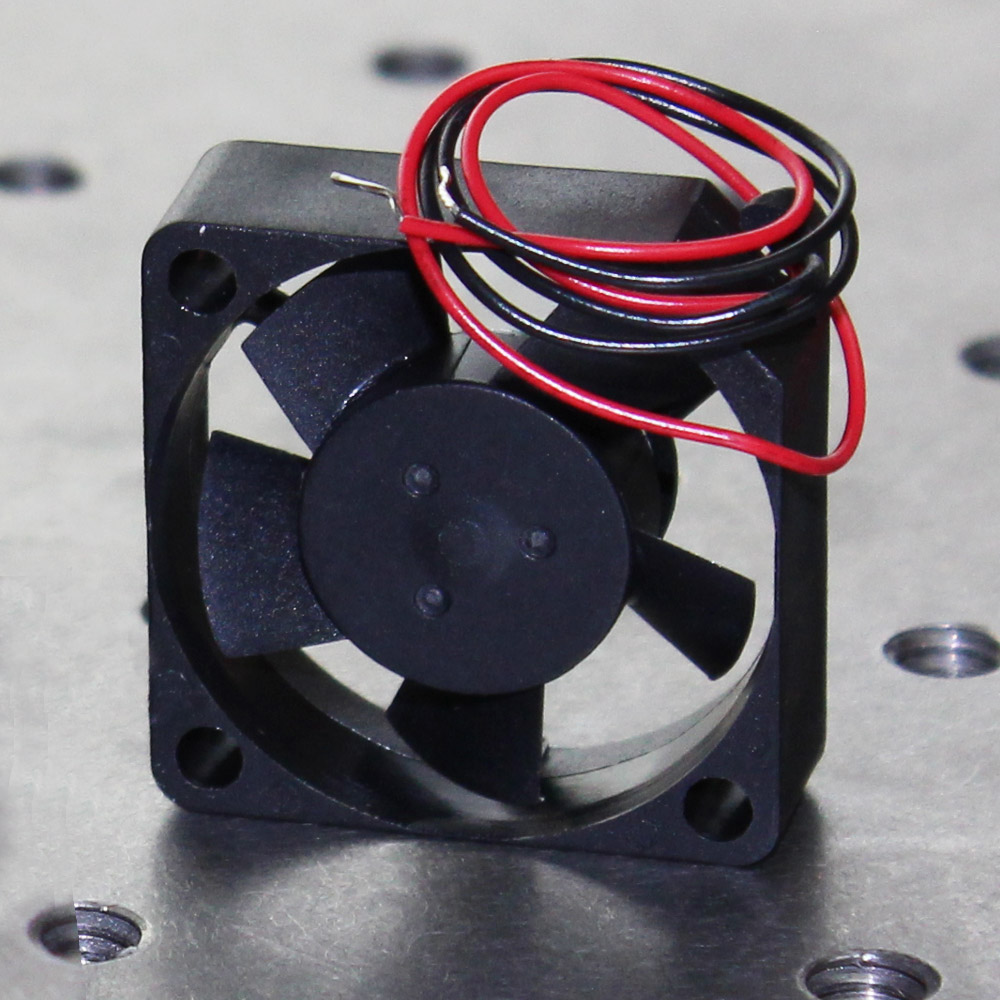

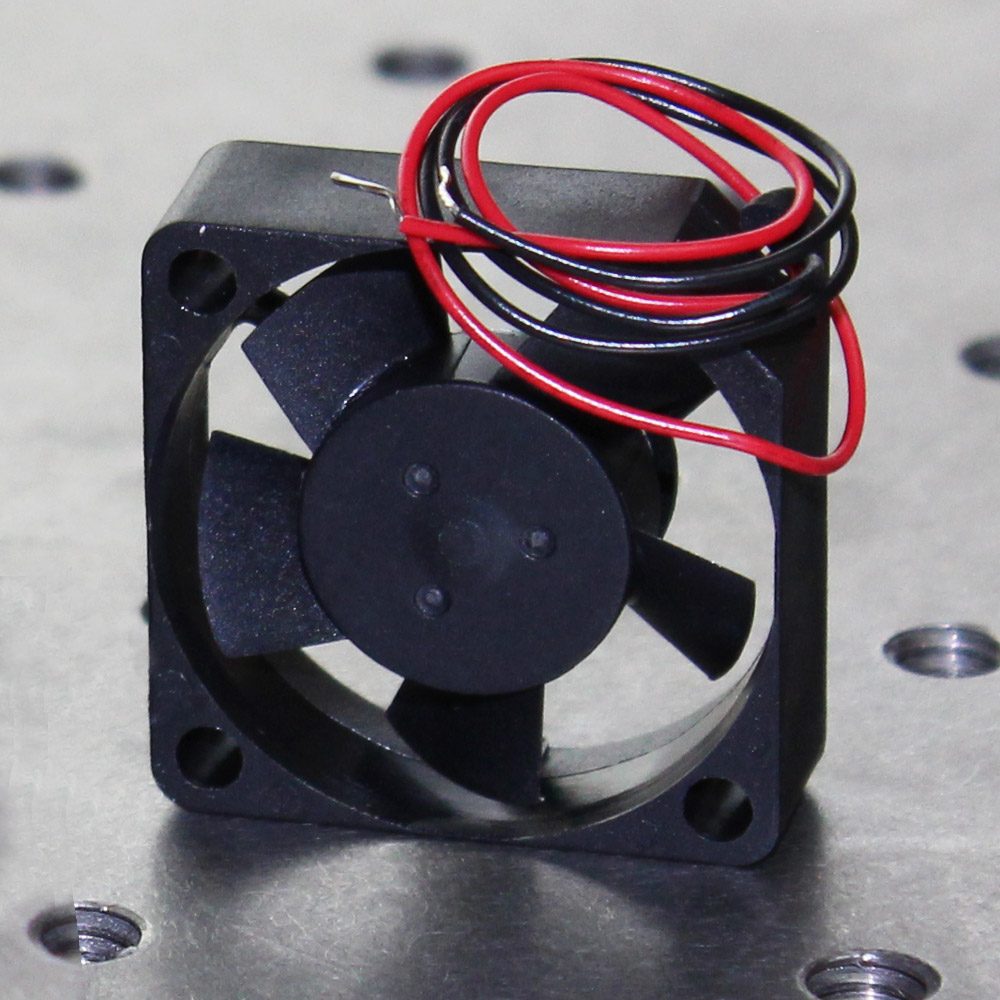

WXC303 +5 V Fan



From: $31.00

Bulk Pricing (6 - 14): $29.00

Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

The WXC303 is a +5V fan designed for use with the WTCP5V5AWTC3243WTC3243HB, or WHY5640 temperature controllers, and the WLD3343WLD3343-2LWLD3343-3AWLD3343-3L or WLD3343HB laser diode drivers.

The controllers operate to 500 mA without any additional heatsinking (assuming 5 V operation). To operate up to 1 A, add the WTW002 thermal washer and the WHS302 heatsink. To operate to the full 2.2 A, add a fan WXC303 (5 V) or WXC304 (12 V). For convenience, a kit with two 0.75″ and two 1″ screws is available: WXC305.

Kits combine these elements: WEV300 (includes thermal washer, heatsink and screw kit), WEV301 (includes thermal washer, heatsink, screw kit, and a +5 V fan) or WEV302 (includes thermal washer, heatsink, screw kit, and a +12 V fan).

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

Flow Rate: 3.5 CFM

Dimensions:

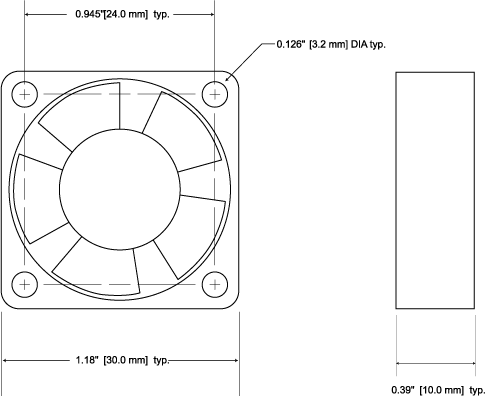

WXC303 Dimensions

Kits

WEV301WEV301 Thermal Solution Kit with +5 V Fan$48
